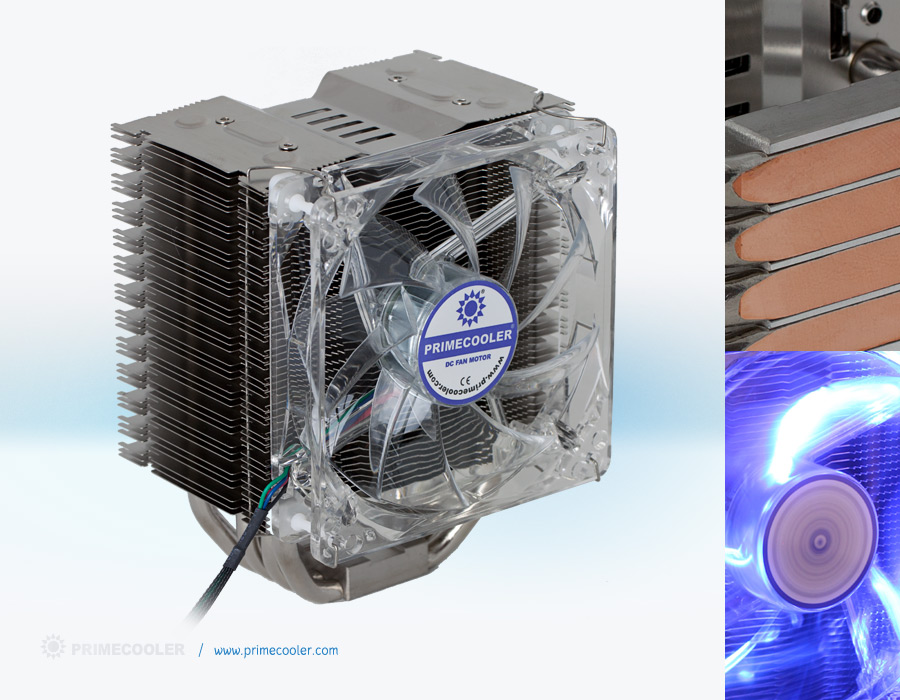

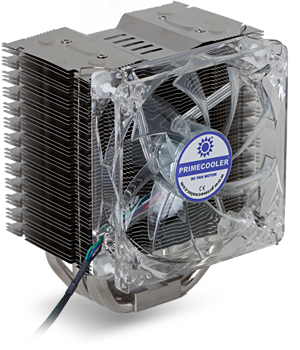

PC-HP5 SuperSilent

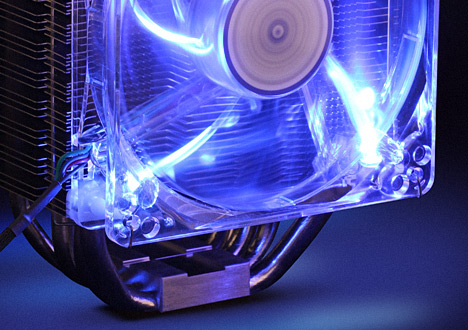

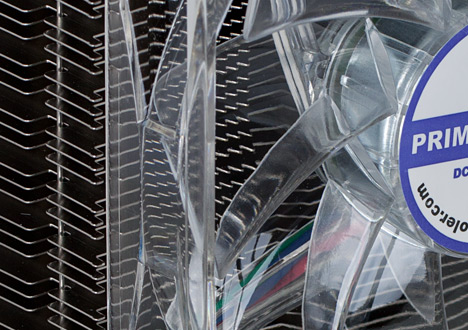

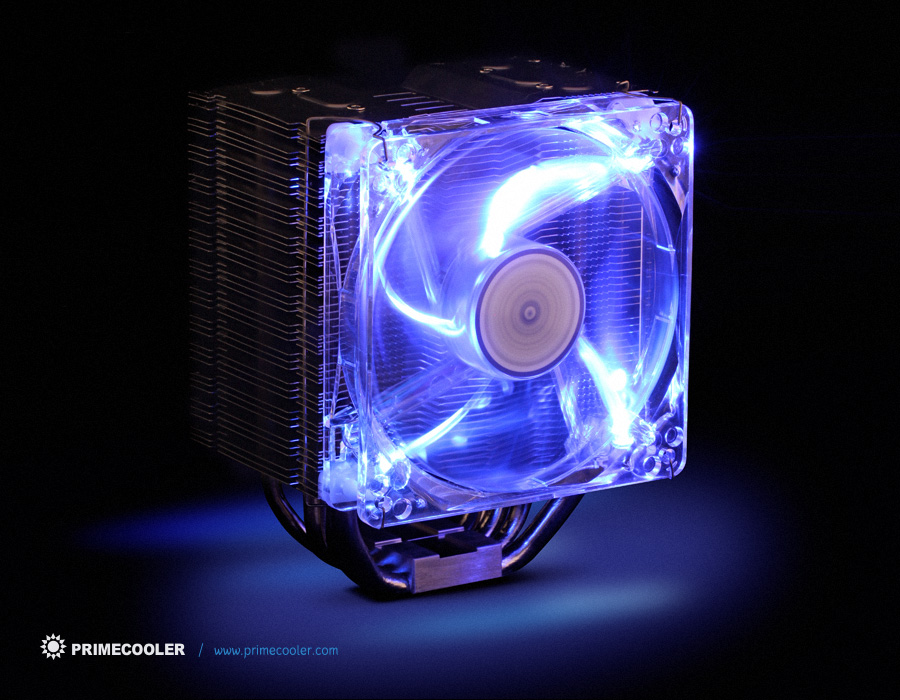

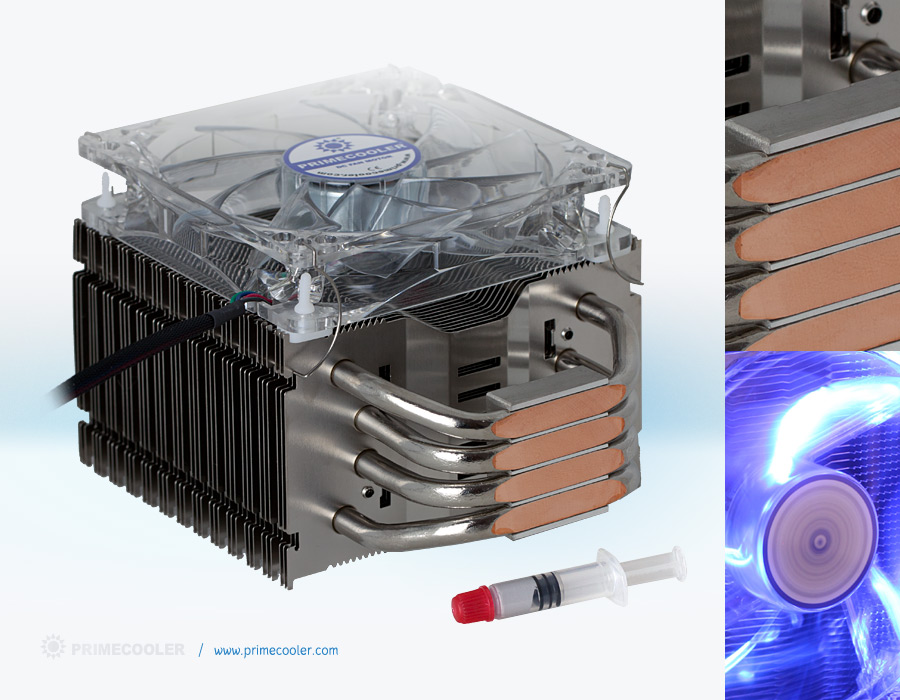

Unique PRIMECOOLER PC-HP5 cooler is constructed on heat pipe technology and its power/value ration range it among the very popular models. The mounting is universal for all platforms. Assembling with blue LED light powerful crystal fan makes it also a piece of art.

PC-HP5 SuperSilent

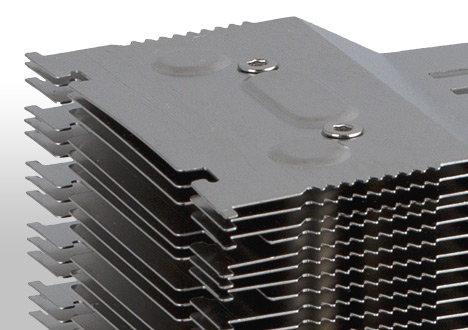

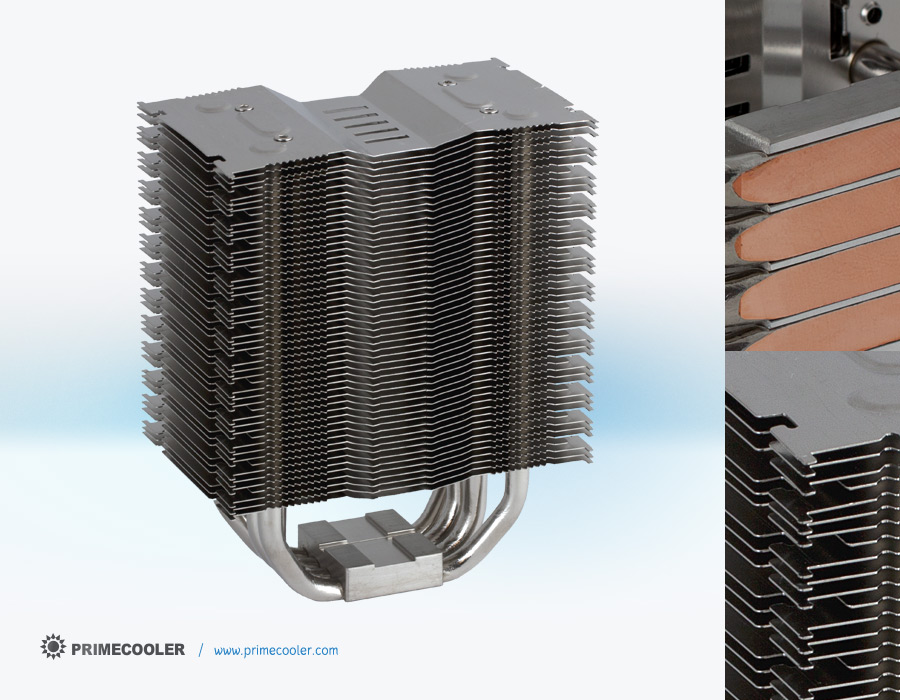

Heat sink fins

Heat sink fins

With cooperation of engineers and designers was created a heat sink basement constructed from 39 longer and 12 shorter thin fins assembled into thoughtful structure. The system of holes and curved fin edges support the heat transfer to maximum level.

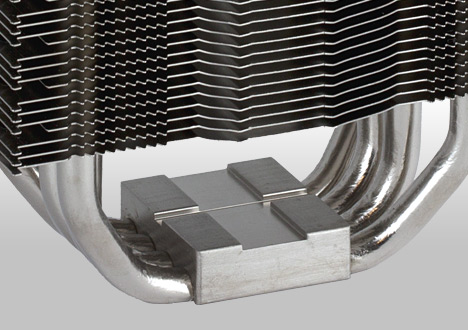

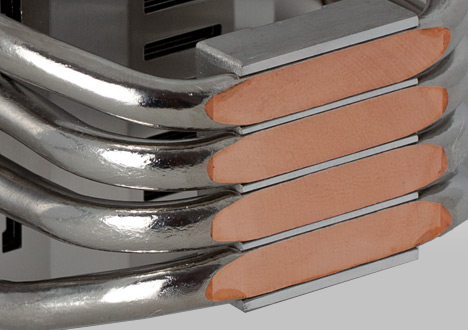

Basement and heat pipes

Basement and heat pipes

The basement made of polished heat pipes is perfectly transferring the heat from CPU to the fins. Four tubes are divided to eight branches and thus distribute the heat uniformly to whole heat sink unit.

Specifications

Dimension125.5 × 104 × 157 mm
Weight929 g
Suitable for CPUIntel LGA 1366 All Series, Intel LGA 775 All Series, AMD AM2 All Series, AMD K8 All Series (Socket 754/939/940)
MaterialAluminum Fins + 4/8 Heat Pipes
ColorSilver
Fan120 × 120 × 25 mm (PWM, Blue LED)
Fan Speed900-1500 ± 10% rpm
Fan BearingEnhanced Hydro Bearing
Max. Airflow60 CFM
Shipping details8 pcs/carton
Shipping dimension57 × 35 × 29 cm/carton
Shipping weight11.3 kg/carton
