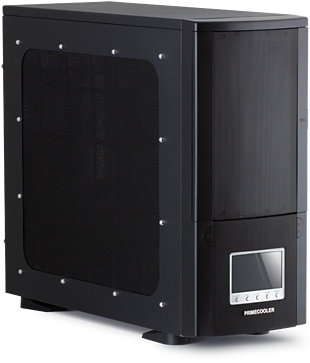

MeshCase

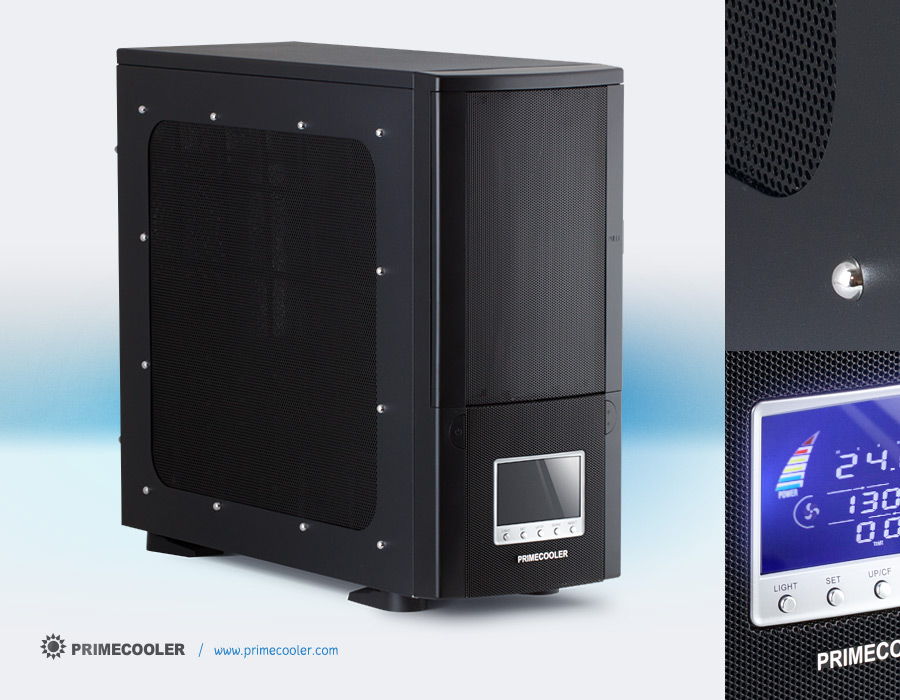

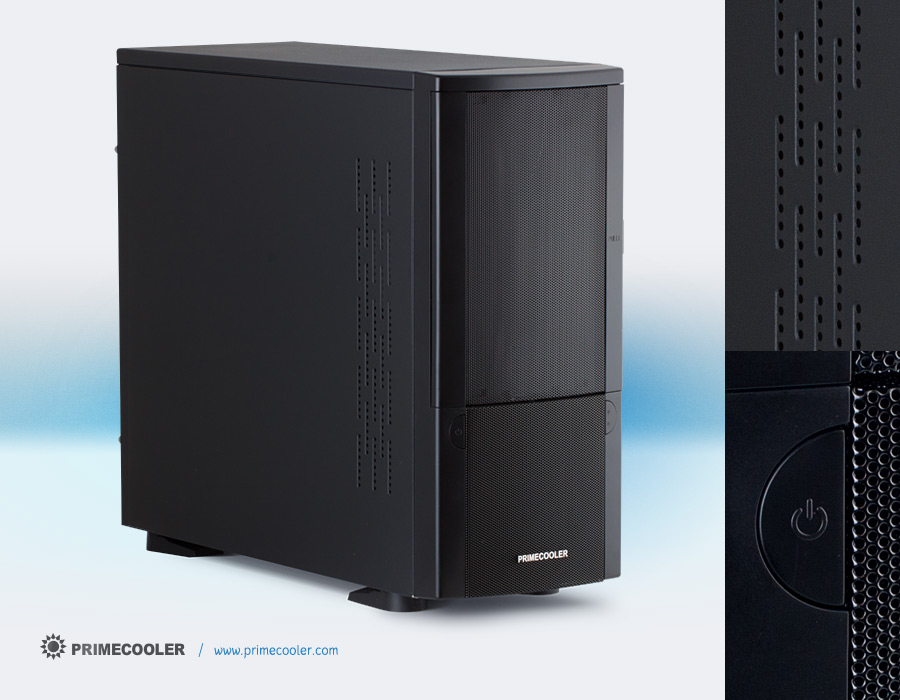

At the first site the case calls up very airy feeling. This is achieved by using the mesh parts that are creating the whole side part of the case. The model can be equipped with the LCD display or there is a choice available without the LCD unit. The case is manufactured for screw-less using.
Product menu
LCD display

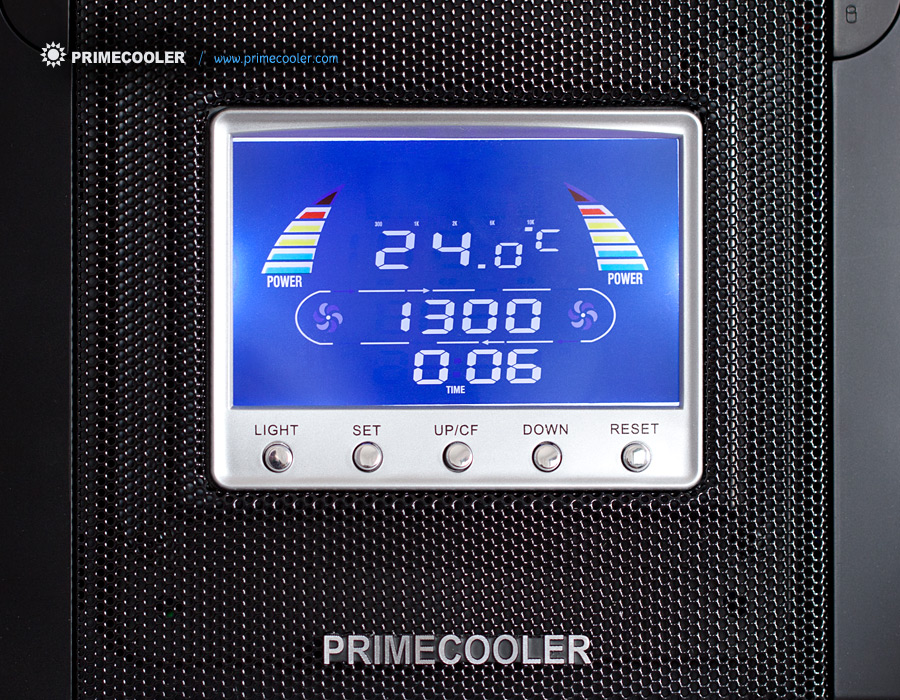

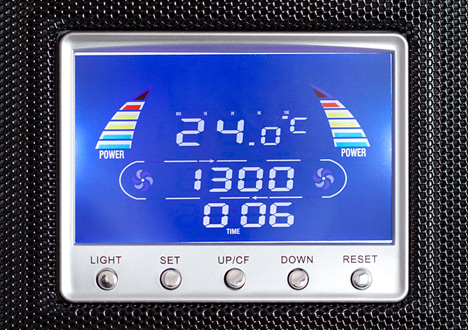

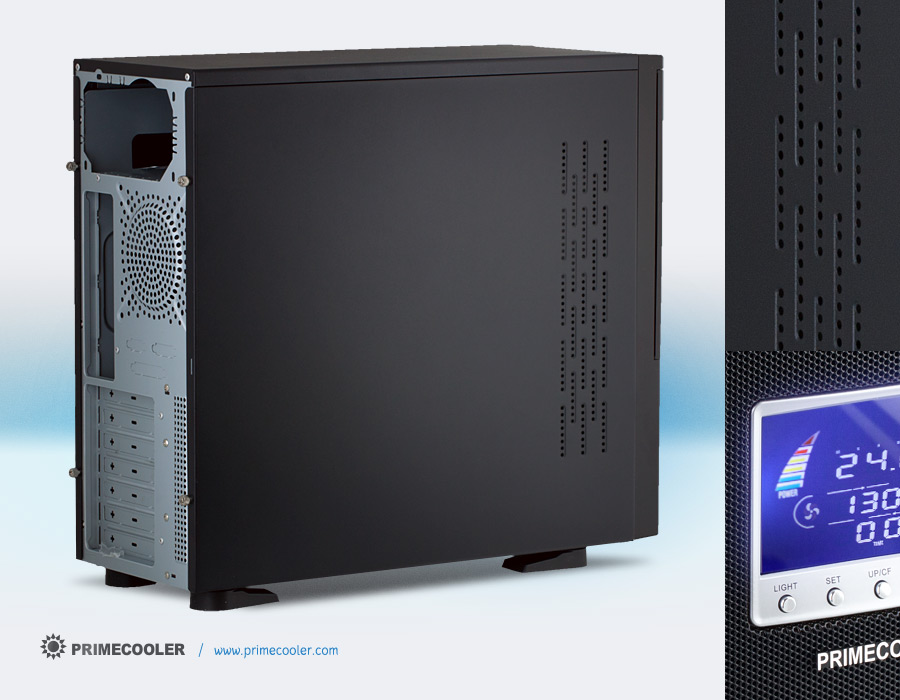

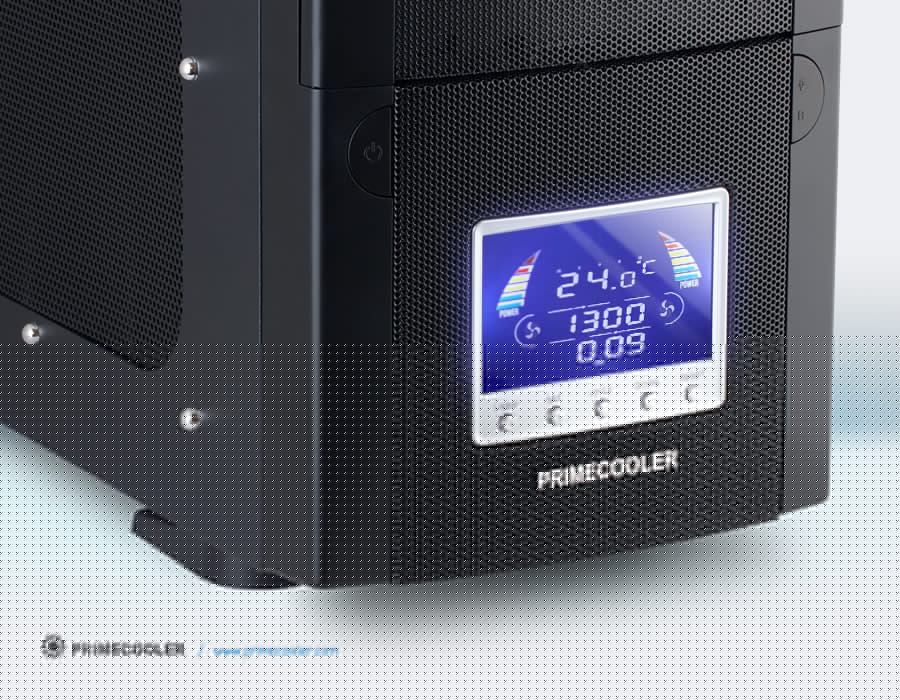

Blue underlighted LCD display shows the actual system temperature, exact time and measures and monitors the fan speed. In case of fan failure, the build-in alarm starts beeping.
MeshSide

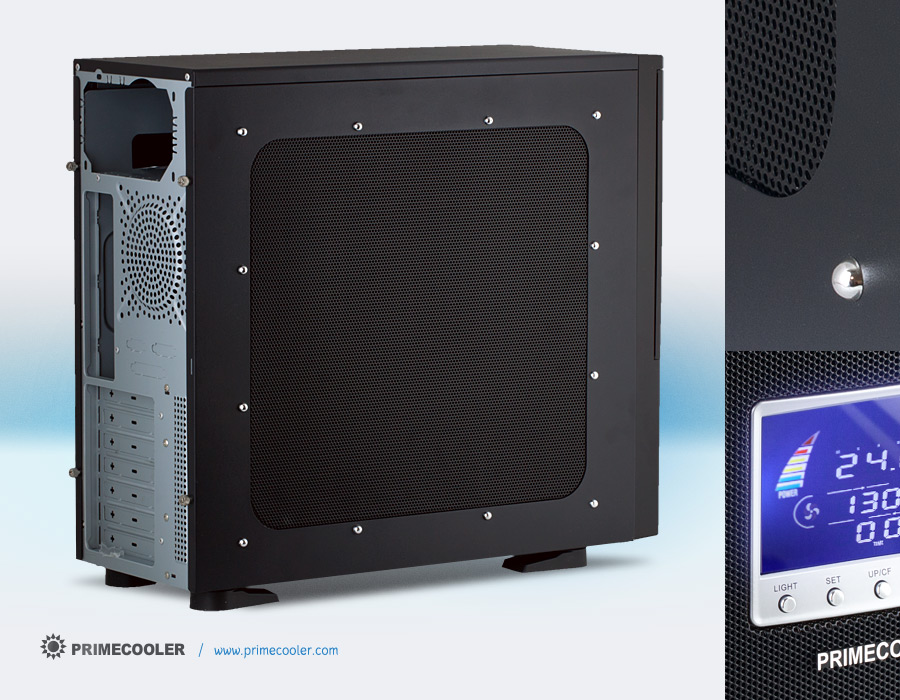

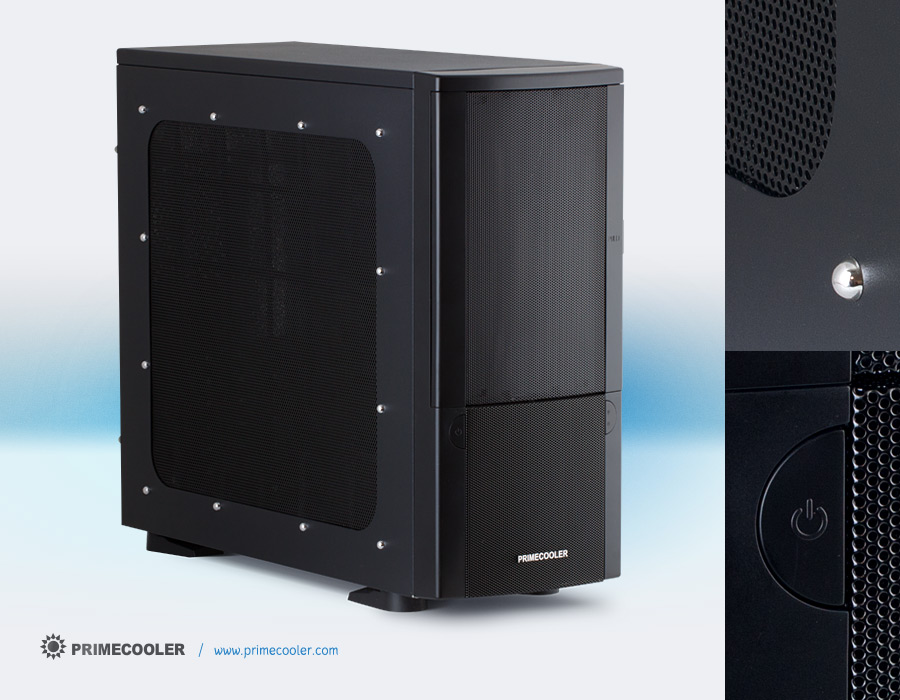

Depending on model, the case is assembled with mesh side panel. This panel enables the fluent air circulation and prevents system overheating and can be even assembled with two 80 mm fans or with one 80 mm and one 120 mm fan.
Types
| Features |  PRIMECOOLER MeshCase AS LCD |
 PRIMECOOLER MeshCase A LCD |
 PRIMECOOLER MeshCase AS |
 PRIMECOOLER MeshCase A |
|---|---|---|---|---|
| LCD display Check if chosen model is assembled with LCD display. |
x | x | - | - |
| MeshSide Check if chosen model is assembled with mesh side panel. |
x | - | x | - |
Specifications
| Dimension | 490 × 190 × 440 mm |
|---|---|
| Weight | 6 kg |
| Space for fans | Front - 80 or 92 or 120 mm Back - 80 or 92 or 120 mm Side (only with MeshSide) - 2 × 80 mm or 80 and 120 mm |

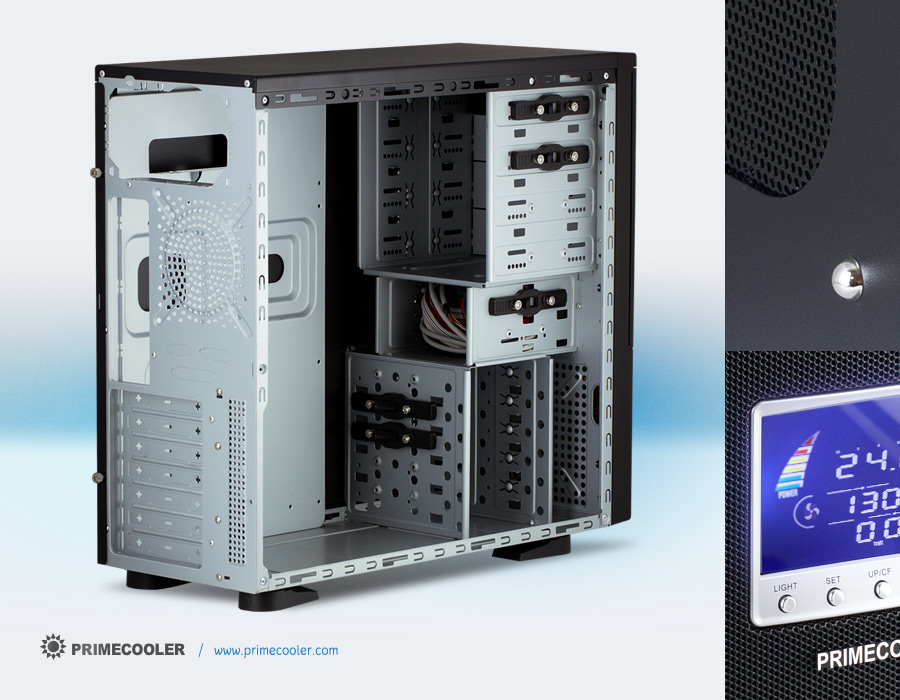

| External bays | 4 × 5.25", 1 × 3.5" |
| Internal bays | 6 × 3.5" |
| Slots | 7 × PCI |
| Suitable for MB | ATX or microATX |
| Suitable for PSU | ATX |

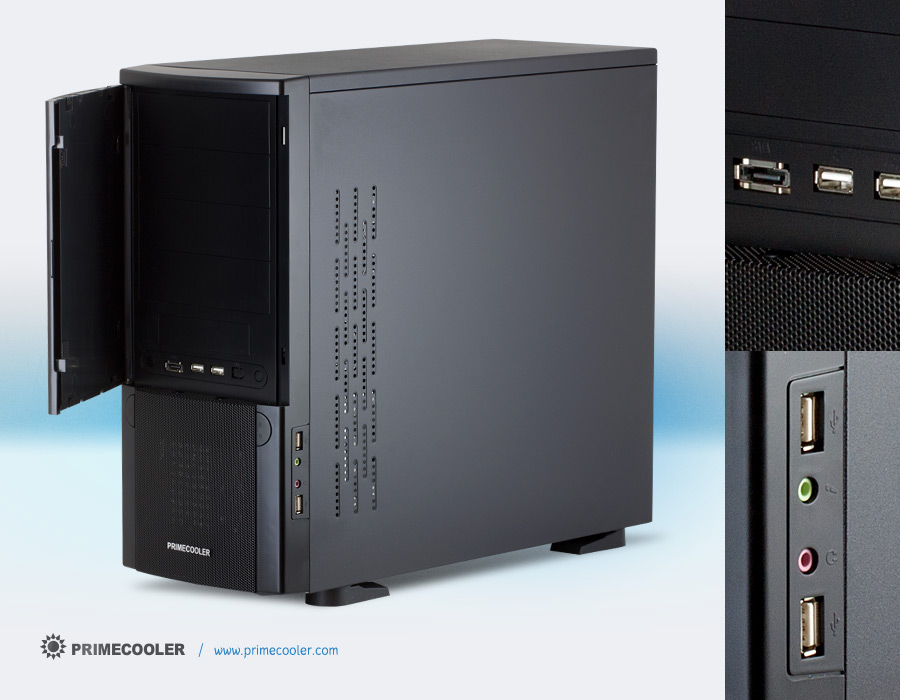

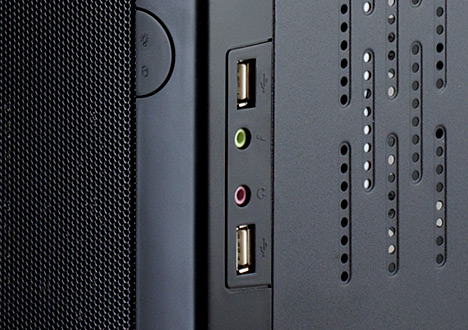

| Ports | Front panel - 2 × USB 2.0, 1 × eSATA Side panel - 2 × USB 2.0, Audio AC97/HD |
| Color | Black |
| Shipping dimension | 470 × 240 × 535 mm |
| Shipping weight | 7 kg |
| Shipping volume | 0.060348 m³ |
